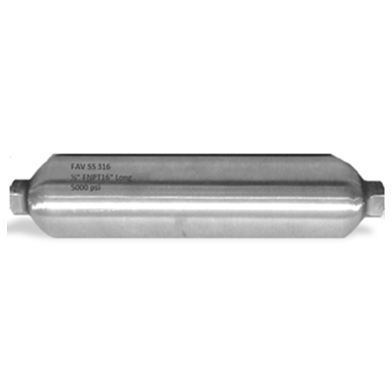

Sampling Cylinder / Sampling Bomb – Type 0- Only Cylinder

Consists of  Just Sampling Cylinder as per Below Dimensions with No Accesories

Sampling Bomb

Sampling Bomb

PART No.
P NPT – F Pressure Rating PSIG Capacity (Internal Vol.)cm 3±5% L mm B mm T mm
FSC150-4 1/4” 5000 150 135 50.8 2.5
FSC300-4 1/4” 5000 300 225 50.8 2.5
FSC400-4 1/4” 5000 400 290 50.8 2.5
FSC500-4 1/4” 5000 500 350 50.8 2.5
FSC1000-4 1/4” 5000 1000 275 88.9 4.6
FSC2250-4 1/4” 5000 2250 435 120 5.2
FSC3785-4 1/4” 5000 3785 680 120 5.2
FSC1000-8 1/2” 5000 1000 275 88.9 4.6
FSC2250-8 1/2” 5000 2250 435 102 5.2
FSC3785-8 1/2” 5000 3785 680 102 5.2
FSC1000-12 3/4” 5000 1000 275 88.9 4.6
FSC2250-12 3/4” 5000 2250 435 102 5.2
FSC3785-12 3/4” 5000 3785 680 102 5.2
