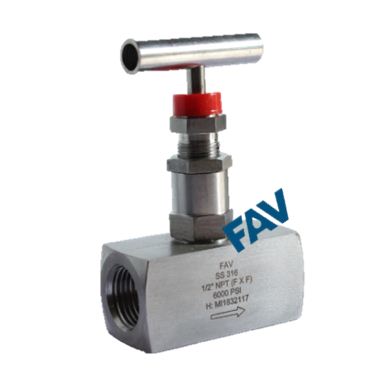

Needle Valve Female

Needle Valve Female X Female 3000 PSI & 6000 PSI. NPT is the standard thread but also available in BSP, BSPT and Metric Thread.

  • Pressure rating up to 5000 psig (340bar) at 100°F (38°C)
  • Body materials available in 316 stainless steel, alloy 400, and brass
  • 100% factory tested
  • Dust Caps Provided
  • Union Bonnet as standard
Needle Valve Female

Needle Valve Female

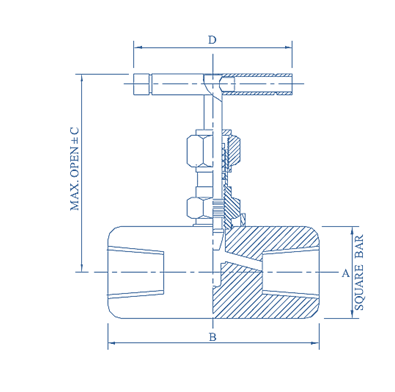

NEEDLE VALVE ,FEMALE X FEMALE,3000 psi and 6000 psi

PART No. SIZE A B ?C D
FNV/FF/01 1/8 19 50 65 45
FNV/FF/02 1/4 22 50 70 50
FNV/FF/03 3/8 25 55 75 55
FNV/FF/04 1/2 30 65 85 55
FNV/FF/06 1 “ 40 85 100 65
FNV/FF/07 1 1/4″ 54 90 120 80
FNV/FF/08 1 1/2″ 62 110 130 88
FNV/FF/09 2 “ 72 120 150 95



We do keep Needle Valve of this type in Stock .Please do contact us for more details.

Needle Valve Stock
