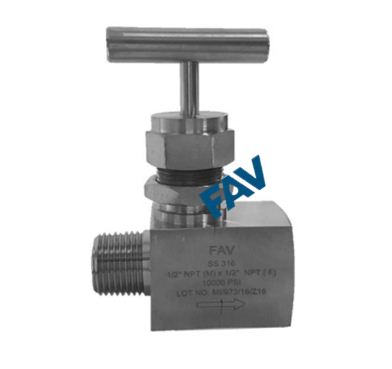

Mini Needle Valve Male X Female

For over 20 years, FAV has been manufacturing and Exporting Stainless Steel Needle valves. Our Mini Needle Valve Male X Female is available in a wide range of configurations up to 1/2”. FAV offers the most precise control of fluids and gases. Manufacturer and exporter of needle valve. Valves are available in 1/8 inch to 2 inch end connection sizes, operating pressures up to 10,000 psi, and with temperature ranges of – 370 degrees F to 1125 F. Valves are available in carbon steel (A105 & C1018), 316 stainless steel, brass, Hastelloy® C276, Monel®, alloy 20, and Duplex® and other specialty alloys. Meets ASME standards.



Mini Needle Valve Male X Female

Mini Needle Valve Male X Female

Mini SS Needle Valve Female X Male

Part No. Connection L D (sq.) C (max.open) E Orifice
Inlet-F Outlet-F
FAM 4N 2 1/4″ 1/4″ 55 22 64 45 4
FAM 6N 2 3/8″ 3/8″ 60 25 67 45 4
FAM 8N 2 1/2″ 1/2″ 65 28 72 55 4.9
