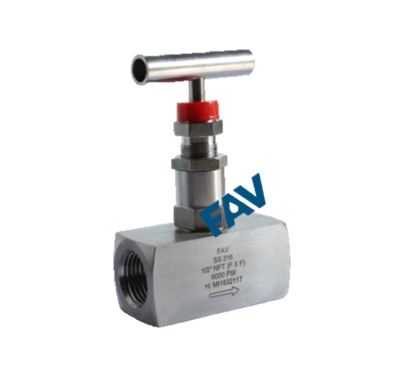

Mini Needle Valve Female X Female

Mini Needle Valve Female X Female are an ideal option for isolating or throttling applications. The self centering, non rotating stem ensures perfect seating. The rigid design gives repetitive bubble tight shut off, easy End connection : NPT / BSPP / BSPT Maximum working pressure : 413 bar / 6000 PSI at 1000 C (see pressure temperature chart on Page No. 4 for higher temperature applications) Material : 316 SS / 316L SS / 304 SS / Carbon steel MOC in accordance with NACE MR0175 is available on request.Monel, Inconel, Hastelloy, Duplex steel are also available on request. Gland packing : PTFE / Graphite



Mini Needle Valve Female X Female

Mini Needle Valve Female X Female

Mini Needle Valve Female X Female

Part No. Connection L D (sq.) C (max.open) E Orifice Cv
Inlet-F Outlet-F
FAM 4N 1 1/4″ 1/4″ 50 22 64 45 4 0.35
FAM 6N 1 3/8″ 3/8″ 55 25 66 45 4 0.35
FAM 8N 1 1/2″ 1/2″ 60 28 72 55 4.9 0.65
