High Pressure Needle Valve (F x M)

Available in stainless steel, carbon steel, brass and alloy 400 materials. Features of High Pressure Needle Valve (F x M) include :

1) One piece Sturdy Construction increases its pressure and temperature capacity. Increases life of the Needle Valve.

2) Panel Mounting Arrangement allows ease in mounting and minimizes vibration

3) Common Sizes like 1/4″ 3/8″ and 1/2″ is available in stock. Common connection thread is NPT.

4) MTC With trace-ability and Hydro test Certificate issued

High Pressure Needle Valve (F x M)

High Pressure Needle Valve (F x M)

SS Needle Valve Male X Female.

PART No. SIZE A1 A2 B ?C D
FNV/MF/HP/01 1/8″ 38 25 55 70 45
FNV/MF/HP/02 1/4″ 38 25 55 75 50
FNV/MF/HP/03 3/8″ 42 28 60 80 55
FNV/MF/HP/04 1/2″ 48 32 65 85 60

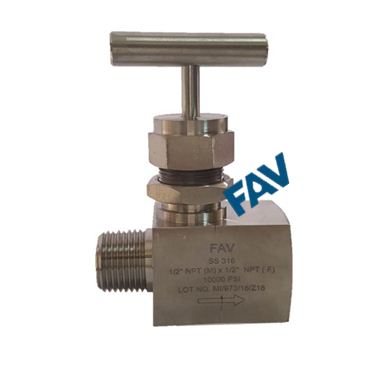

Please see below actual photos of High Pressure Needle Valve,10000 psi available with us now.

For High Pressure Needle Valves in Carbon Steel in NPT Connection  Click Here. For High Pressure Needle Valves in Carbon Steel with Socket Weld Connection Click Here.



Needle Valve M x F Needle Valve 10000 psi

For High Pressure Needle Valve,10000 psi ,Female X Female ,Click Here
