High Pressure Check Valve 15000 PSI

FAV High Pressure Check Valve 15000 PSI is designed for High Pressure and High Temperature and demanding environment. With a wide variety of port sizes, end connections, style, temperature and pressure tolerance FAV High Pressure Check Valve 15000 PSI are critical for instrumentation, fluid and process control system.

They are High Pressure Check Valve 15000 PSI and non-return valve that permit gases and liquids to flow in only one direction, preventing process flow from reversing. FAV Instrument Check Valve provide unidirectional flow and tight shut-off for liquids and gas with high reliability. When differential drops below cracking pressure (20 psi ±30%), valve shuts off. Ball Check Valve prevents reverse flow where leak-tight shut-off is not mandatory. When differential drops below cracking pressure, valve closes.

A wide array of configurations are available such as Female Check Valves, Male Check Valves, Female to Male Check Valves and Tube End Check Valves (Double Ferrule) We also manufacture customized High Pressure Check Valve 15000 psi  in various styles, shapes and sizes. We offer Check Valves for  high pressure applications with selectable crack pressures as well as High Pressure Check Valve 15000 psi with adjustable crack pressures. Instrument Check Valve are offered with compression and NPT end connections, and a wide variety of Imperial and Metric end connections are available.

Advantages of High Pressure Check Valve 15000 PSI ?

1.Innovative Compact design for 15000 psi
2.Available in variety of material
3.Low operating Torques
4.Variety of end connections includes Male / Female NPT, BSPT, BSPP,JIC,O Seal,Metric
5.Every valve is factory tested



High Pressure Check Valve 15000 PSI

High Pressure Check Valve 15000 PSI


SS 316 Check Valve ,Female X Female.















  END CONNECTIONS PRESSURE RATING 100?F (37?C) PSIG DIMENSIONS MM   Cv
PART No. INLET / OUT LET   L A/F
FAVCV/FF/15K02 1/8″ 15000 psi 58 22 0.78
FAVCV/FF/15K04 1/4″ 15000 psi 58 25 1.31
FAVCV/FF/15K06 3/8″ 15000 psi 65 27 1.52
FAVCV/FF/15K08 1/2″ 15000 psi 70 36 1.68
FAVCV/FF/15K12 3/4″ 15000 psi 82 45 4.85
FAVCV/FF/15K16 1″ 15000 psi 90 50 8.3

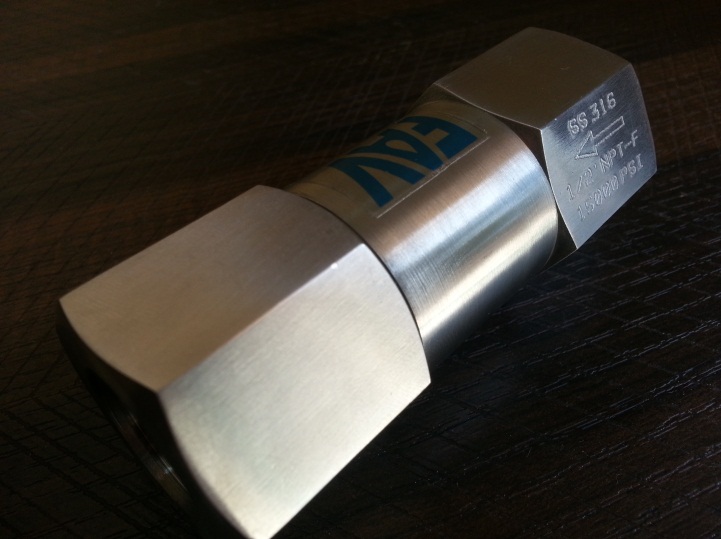

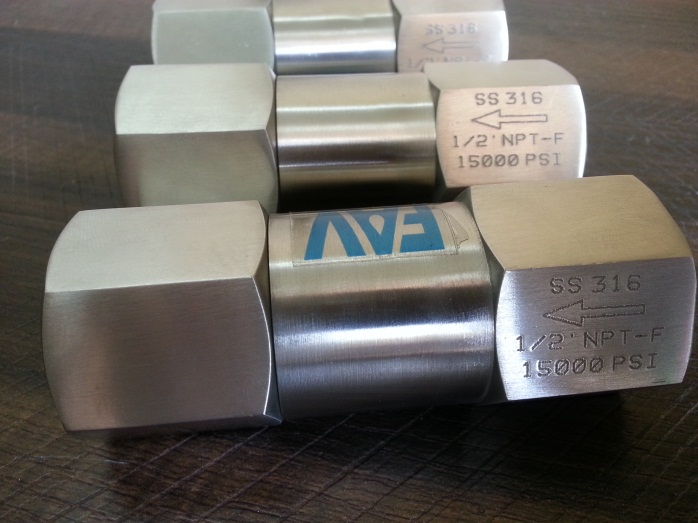

Currently we have SS 316 Check Valves ,1/2″NPT Female ,15000 psi in Stock .Attached below is actual photos .

20130928_111800 20130928_111817
