Gauge Valve Block & Bleed Type Female

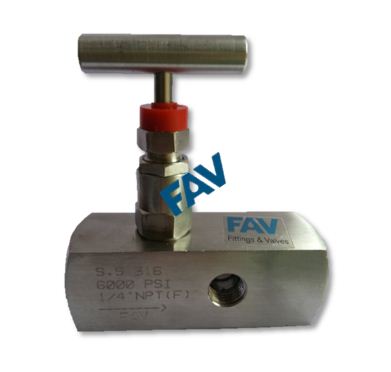

Gauge Valve Block & Bleed Type Female design allows pressure to be bled off without disturbing the permanent piping installation, allowing quick and easy removal or replacement of instruments. For the same reason bleeder is provided below the valve

FAV Multiport Gauge Valve are designed for connecting system impulse line & transmitters. These manifold consist of Single valve configuration which allows for easy isolation, calibration, block and bleed for gauges, pressure switches and static pressure transmitting instruments. These valves are rugged in construction to withstand high pressures and temperatures. The valves are rated for pressures as high as 6000 PSI at 200 o F or 4000 PSI at 500 o F. with PTFE Packing. For a Higher Temperatures Grafoil Packing is used. These valve combine the functions of a tee, calibration valve, isolation valve and all tubing and fittings into a single compact unit thus reducing number of fittings and space required for installation.

Gauge Valve Block & Bleed Type Female

Gauge Valve Block & Bleed Type Female


Gauge Neel Valve,Vent Plug Female X Female

PART No. END CONNECTIONS DIMENSION
  P P1 A ?C D E
FGV/BB/05 1/4″ FEMALE 1/4″ FEMALE 70 62 25 45
FGV/BB/06 3/8″FEMALE 3/8 FEMALE 70 62 25 45
FGV/BB/07 1/2″ FEMALE 1/2″ FEMALE 75 84 30 55
